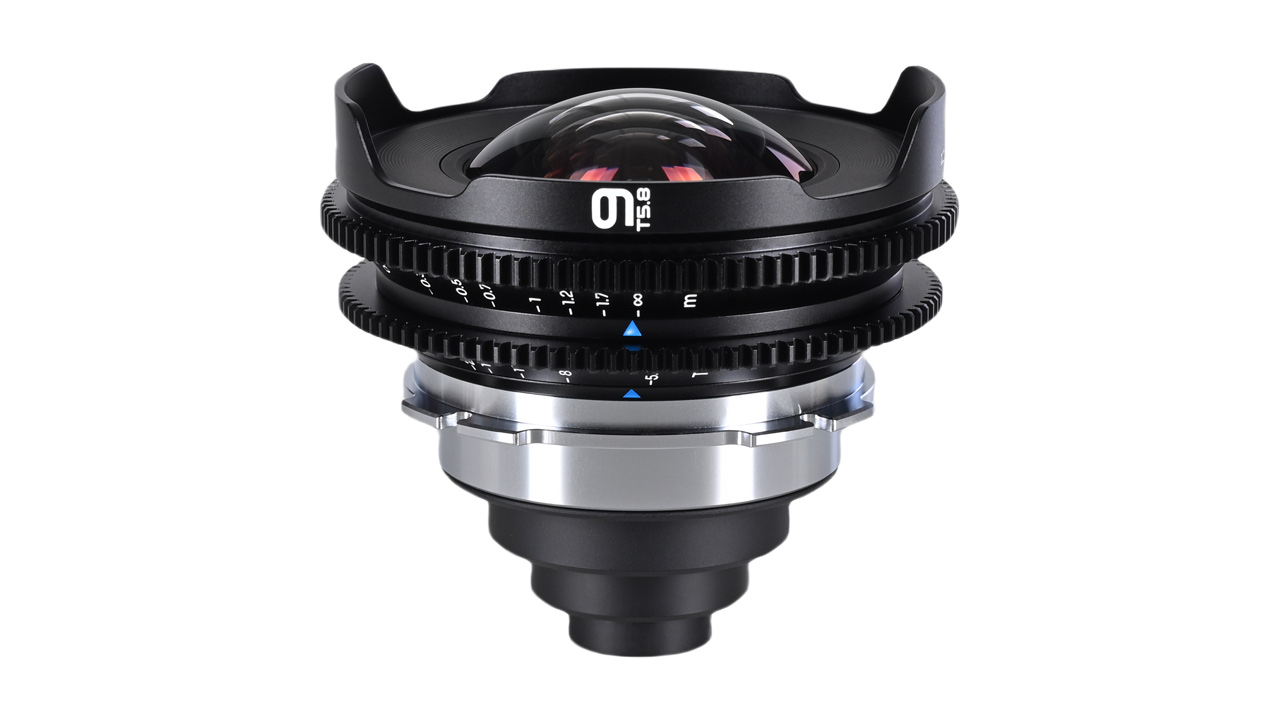

LAOWA announced they began accepting orders for the new non-fisheye, wide-angle Vista Vision compatible cine prime lens, the LAOWA 9mm T5.8 VV Cine. The expected market price is around $1,499 US Dollars. Details and preorder information are available on their website.
LAOWA 9mm T5.8 VV Cine Features
Ultra-wide lens covering Vista Vision
The LAOWA 9mm T5.8 VV Cine covers Vista Vision (image circle diameter: φ46.31mm). The lens is compatible with large-format cameras such as the RED Raptor 8K VV (φ46.31mm) and Alexa LF Open Gate (φ44.71mm).
This lens is the widest Vista Vision compatible non-fisheye lens on the cinema market. It has a 134.8° angle of view, and straight lines are depicted as straight lines. It makes it easy to shoot in tight spaces that were previously difficult to do. In addition, the ultra-wide perspective is effective in exaggerating the space and achieving a dramatic effect.
Close-up photography
The minimum focusing distance is 12cm, allowing for close-up focusing. It offers more creative flexibility and allows for shallow depth of field and beautiful bokeh despite being an ultra-wide-angle lens. Also, by getting closer to the subject, foreground elements are emphasized, giving the scene more depth and visual impact. It allows for close-up shots and detailed shots like those captured with a macro lens.
Exceptional image quality
The low distortion design achieves excellent sharpness from the center to the periphery of the lens. It also has little chromatic aberration, minimizing color bleeding in high-contrast peripheral areas, allowing you to capture clearer, sharper images.
Compact and lightweight design
Its lightweight and versatility makes it ideal for a variety of filming setups, including gimbals, drones, handheld, rigs, and other stabilized equipment. Its compact size makes it easy to use in tight spaces and on the go, allowing for dynamic shots and smooth camera movements.
Compatible with many mounts
Various mounts are available to accommodate a variety of cameras and settings.
LAOWA 9mm T5.8 VV Cine Specifications
| Focal length | 9mm |
| Aperture Range | T5.8-22 |
| format | FF & VV |
| Image Circle Diameter | φ46.3mm |
| Angle of View | 134.8° |
| Lens construction | 14 elements in 10 groups |
| Number of aperture blades | 14 sheets |
| Aperture ring rotation angle | 43.6° |
| Focus ring rotation angle | 90° |
| Minimum focusing distance | 12cm |
| Distance Indicator | m/ft (dual scale) |
| Maximum Magnification | 0.21x |
| Filter Thread Diameter | none |
| Front Diameter | φ80mm |
| size | φ84×41.3mm (PL) |
| mass | 430g (PL) |
*Due to the nature of the PL mount lens, there is a possibility that the rear side may interfere with some camera models. Please refer to the “Clearance Check Sheet” on the LAOWA official website.
