Orders for the GODOX “AD21/32/33” series diffuser panel, which can change the light diffusion effect through precise motorized control, started from August 22, 2025.
This new diffusion panel uses precise motorized control to instantly adjust the level of light diffusion, from hard light to ultra-soft light. Available in three sizes, it increases the flexibility and creative possibilities of your photography.

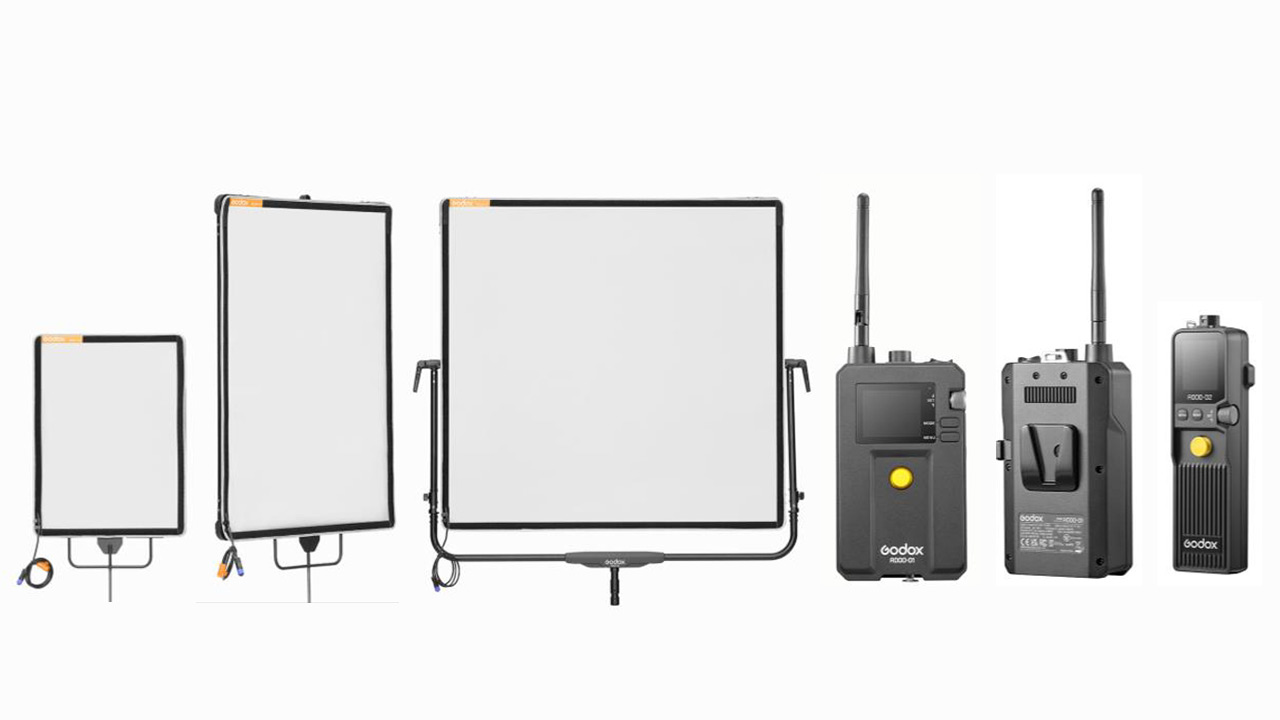

There are three sizes available: AD21 (451 x 602mm), AD32 (636 x 925mm), and AD33 (1053 x 1006mm), each with two controller options: the K2 kit, which includes the AD00-01 compatible V-mount battery, and the K3 kit, which includes the AD00-02 compatible NPF battery.

Each controller supports remote control via Bluetooth (app) and DMX. The AD00-01 also features CRMX functionality, providing stable, low-latency wireless control. Lead/follow mode allows one controller to synchronize all controllers on the set, enabling smooth diffusion adjustment.

The latest frequency adjustment technology supports five frequency levels, supports different frame rates (up to 300fps), and ensures flicker-free operation.
It features dual modes: Level mode and Dimming mode. Level mode allows quick visual adjustment from 0 to 100%, while Dimming mode allows adjustment from -0.1 to -2.0 EV, matching professional workflows.
The folding frame (with removable Velcro fastening panels) allows for compact storage and quick deployment, and the IP54 rating makes it ideal for rainy weather.
GODOX AD21/32/33 Specification
| K2 Kit Included Items | K3 Kit Included Items | |
| AD21 | Diffusion panel, frame + bracket, storage bag, USB-C cable, AC cable controller: AD00-01, D-Tap to USB-C adapter |
Controller: AD00-02 |

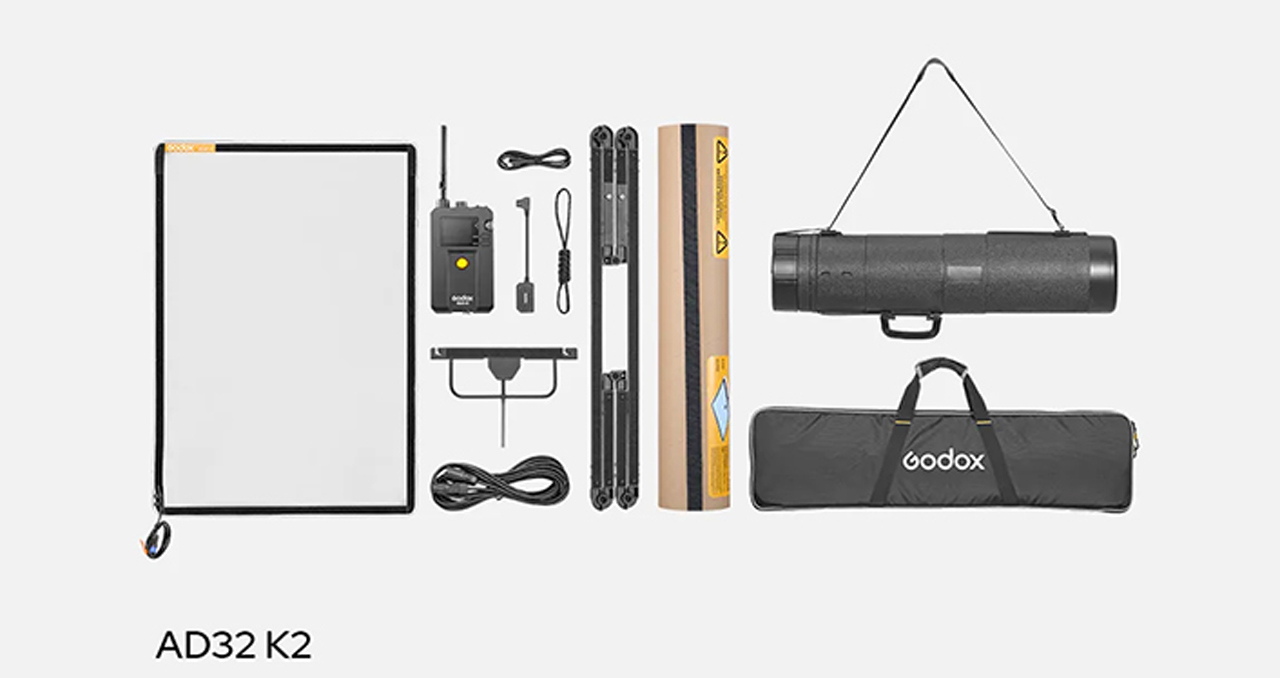

| AD32 | Diffusion panel, frame + bracket, tube case, storage bag, USB-C cable, AC cable | |
| Controller: AD00-01, D-Tap to USB-C adapter | Controller: AD00-02 | |
| AD33 | Diffusion panel, frame + bracket, tube case, storage bag, USB-C cable, AC cable | |
| Controller: AD00-01, D-Tap to USB-C adapter | Controller: AD00-02 | |
| AD21-01 | AD32-01 | AD33-01 | |
| AC Input Power | 0V-28V/1.8W | 0V-28V/3W | 0V-28V/4.5W |
| size | 451×602mm | 636×925mm | 1053×1006mm |
| weight | 0.25kg | 0.5kg | 0.8kg |
| AD00-01 | AD00-02 | |
| AC power output | 0-28V | |
| USB-C port (input) | 12V-20V/12W | 5V/2A |
| USB-A port | 5V/1.5A for firmware updates | – |
| Control Method | Main unit control, Bluetooth (app), DMX (RDM) | |
| CRMX | ○ | – |
| Bluetooth control range (max) | 30m | |
| Operating environment temperature | -20 to 40°C | |
| size | 83×46×150mm | 50×36×180mm |
| weight | 259g | 160g |
Product Lineup
- AD21 K2 Kit (CRMX/V Mount)
- AD21 K3 Kit (NPF mount)
- AD32 K2 Kit (CRMX/V Mount)
- AD32 K3 Kit (NPF mount)
- AD33 K2 Kit (CRMX/V mount)
- AD33 K3 Kit (NPF mount)
- AD21-01 Panel (single item)
- AD32-01 Panel (single item)
- AD33-01 Panel (single item)
- AD00-01 Controller (V-mount)
- AD00-02 Controller (NPF mount)
