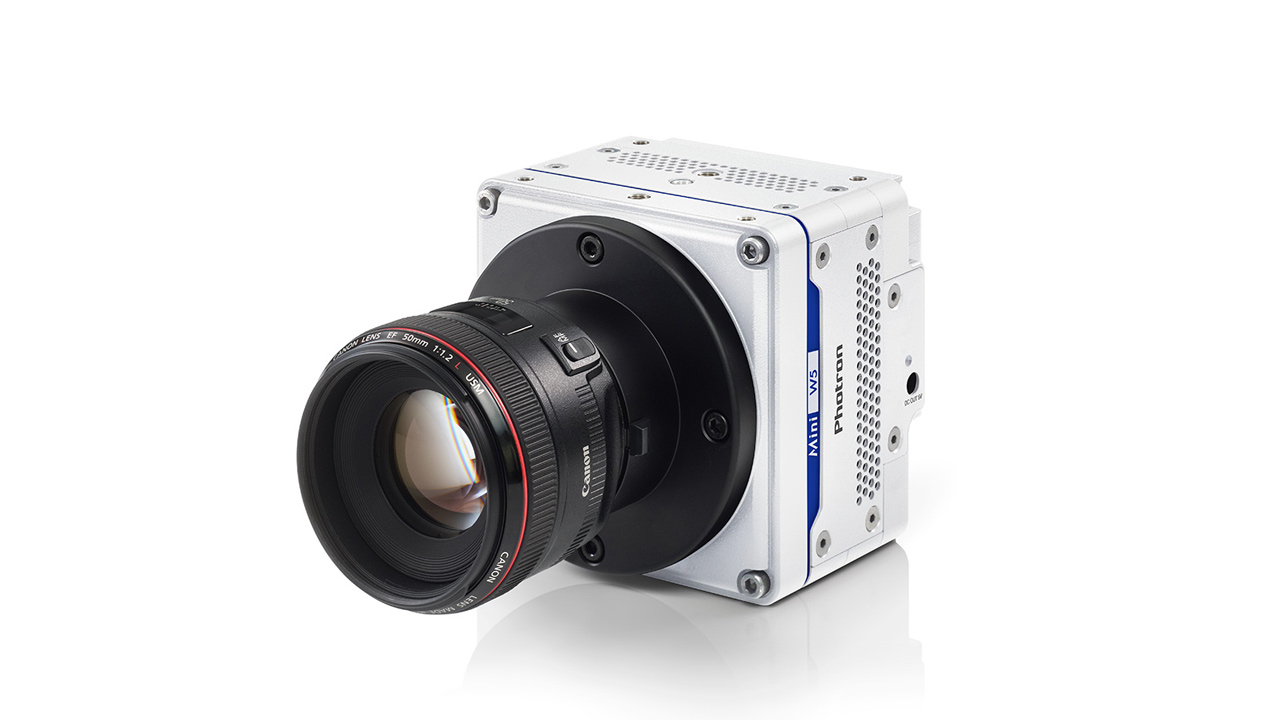

Photron simultaneously released the FASTCAM Mini W5, a compact, lightweight high-speed camera capable of high-speed shooting at 5,280 fps at full HD resolution (1920 x 1080 pixels) and a maximum shooting speed of 200,000 fps, and the FASTCAM Mini W2, a compact and lightweight high-speed camera capable of high-speed shooting at 2,750 fps at full HD resolution (1920 x 1080 pixels) and a maximum shooting speed of 150,000 fps.
Background of Photron FASTCAM Mini W Series development
The need for image measurement systems using high-speed cameras with high resolution is increasing year by year in the R&D departments of private companies and in cutting-edge R&D themes at universities and government agencies. In particular, automobile safety testing requires not only high resolution, but also remote lens control, multi-power support, G-force resistance, and compactness and light weight. To meet these needs, we are releasing the FASTCAM Mini W Series, a full HD resolution model of our high-performance high-speed camera, the FASTCAM Mini Series.
Compared to the previous full HD model, the FASTCAM Mini WX, the FASTCAM Mini W5 achieves approximately 2.5 times the shooting speed while maintaining the same high resolution, and achieves a monochrome ISO sensitivity of ISO 10,000, which is approximately 1.5 times higher than the previous model. It is hoped that this high-speed camera, which combines high resolution with compactness and light weight, will be widely supported in cutting-edge research fields.
Main features of the Photron FASTCAM Mini W Series

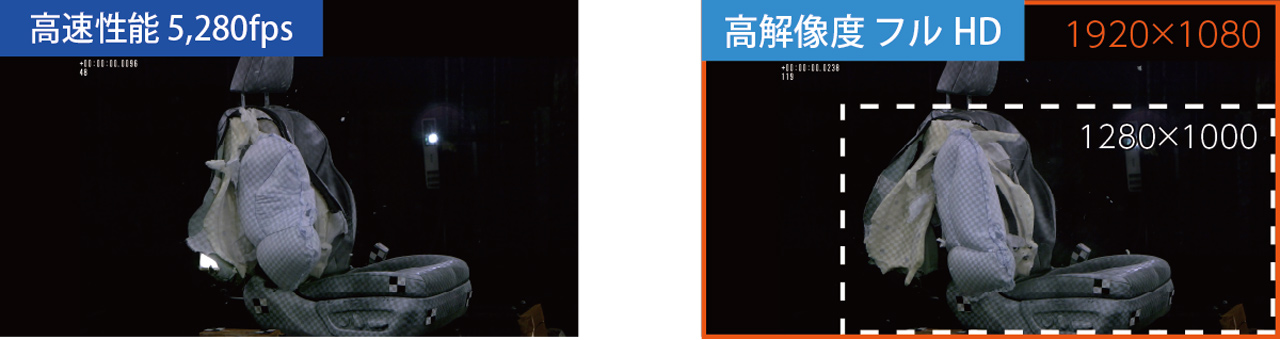

High-speed, high-resolution shooting performance of 5,280 fps in full HD resolution
The FASTCAM Mini W5 achieves 5,280 fps shooting performance at full HD resolution, which is approximately 2.5 times faster than the previous model *1 . Furthermore, at 5,000 fps, it achieves full HD resolution, which is approximately 1.6 times faster than the previous model *2 .
*1: FASTCAM Mini WX100 (Full HD resolution, 2,000fps)
*2: FASTCAM Mini UX100 (5,000fps, 1280 x 1000 pixels)

Compatible with RF mount lenses for remote control
Using the control software “Photron FASTCAM Viewer4 (PFV4)”, the lens aperture and focus can be remotely controlled from a PC. Furthermore, some RF mount lenses can also be used for remote zoom control by adding an adapter, giving you greater flexibility.
This is useful when access to the camera installation location is restricted or when the camera and control PC are located far apart.

Compact and lightweight sealed housing: 120.0 x 120.0 x 92.4 mm (WHD), 2.1 kg
The FASTCAM Mini W Series boasts high performance yet is compact and lightweight at just 2.1 kg. The compact and lightweight body can be carried with one hand, making it easy to install in difficult-to-reach locations, reducing the risk of interference with other equipment and reducing the cost of creating fixtures.
Furthermore, the sealed structure prevents foreign objects such as dust from entering the camera, reducing the risk of malfunction.

Supports 10GbE for high-speed data transfer and dual power supplies
High-resolution image data can also be transferred to a PC at high speed via 10GbE. In addition, by using multiple power supplies, even if the main power cable is accidentally disconnected, the camera can continue to operate by automatically switching to the secondary power supply.
Equipped with a variety of useful functions for various photography and measurement
- Random reset trigger mode: Used to synchronize with double pulse lasers and is useful for PIV measurements
- Variable frequency synchronization function: Enables synchronized shooting with irregular signals such as engine crank angle signals
- Fan stop function: Useful when photographing small objects
In addition, it is equipped with many other functions that are useful for various types of photography and measurement.
Main specifications of the Photron FASTCAM Mini W Series
| Model name | FASTCAM Mini W5/FASTCAM Mini W2 |
| Maximum resolution | 2048×1152pixel |
| Maximum shooting speed (full frame) |
FASTCAM Mini W5: 5,000 fps (2048 x 1152 pixels) FASTCAM Mini W2: 2,500 fps (2048 x 1152 pixels) |
| Maximum shooting speed (split frame) |
FASTCAM Mini W5: 200,000 fps (2048 x 8 pixels) FASTCAM Mini W2: 150,000 fps (2048 x 8 pixels) |
| Sensor Size/Diagonal | 26.62×14.97mm/30.54mm |
| Pixel Size | 13×13μm |
| Shortest exposure time | 2.0μsec |
| sensitivity | Monochrome: ISO 10,000 Color: ISO 2,000 |
| Density gradation | Monochrome: 12-bit A/D conversion Color: 36-bit A/D conversion |
| Memory capacity | Choose from 16, 32, or 64 GB (upgradeable to higher capacities after purchase) |
| Interface | RJ45 (1000BASE-T/10GBASE-T) |
| Trigger Mode | Start, Center, End, Manual, Random, Random Reset, Random Manual |
| External Signal | Input: Trigger (TTL/contact), sync signal, ready signal, event signal, IRIG Output: Trigger, sync signal, ready signal, exposure signal, recording signal |
| External Sync Signal | Input: +3.3 to +12V negative/positive (switchable) Output: +5V negative/positive (switchable) |
| Case and cooling method | Fan-equipped sealed enclosure, air-cooled by built-in fan (fan control allows fan stop) |
| size | 120.0(W) x 120.0(H) x 92.4(D)mm (excluding protrusions and accessories) |
| weight | 2.1 kg (excluding protrusions and accessories) |
| Lens mount | Standard: F mount (compatible with G-type lenses) Options: RF mount *1, EF mount *2, C mount *3, M42 mount *3 *1: Mount is added for Canon RF-S lenses *2: Mount is added for Canon EF-S and EF-M lenses *3: There are restrictions on the lenses that can be used with C mount and M42 mount (C mount: protrusion from flange to image sensor side: 7.5 mm or less) (M42 mount: protrusion from flange to image sensor side: 9.5 mm or less) |
| Storage temperature/humidity | -20℃ to 60℃ (no condensation) |
| Operating temperature/humidity | 0℃ to 40℃ (no condensation) |
| Shock resistance | 100G/11ms/6axes/1,000times |
| Power Connector | 16pin (Photoron Camera Hub), 4pin (Battery) |
| power supply | 5V/Max. 1A output *Connect to the DC jack on the side to supply power to LED lighting or wireless modules. |
| AC power (using the included AC adapter) | 100-240V, 50-60Hz |
| DC power supply | 22-32V, 70VA |
| Standard accessories | AC adapter x 1, AC cable x 1, DC cable x 1, LAN cable x 1, F mount plate (compatible with G-type lenses) x 1, First Step Guide x 1, Shipping inspection certificate x 1, Overseas transport precautions x 1 |
| Optional items | Carrying case, C-mount plate, RF-mount plate, EF-mount plate, M42-mount plate, RJ45 connector fixing bracket |
