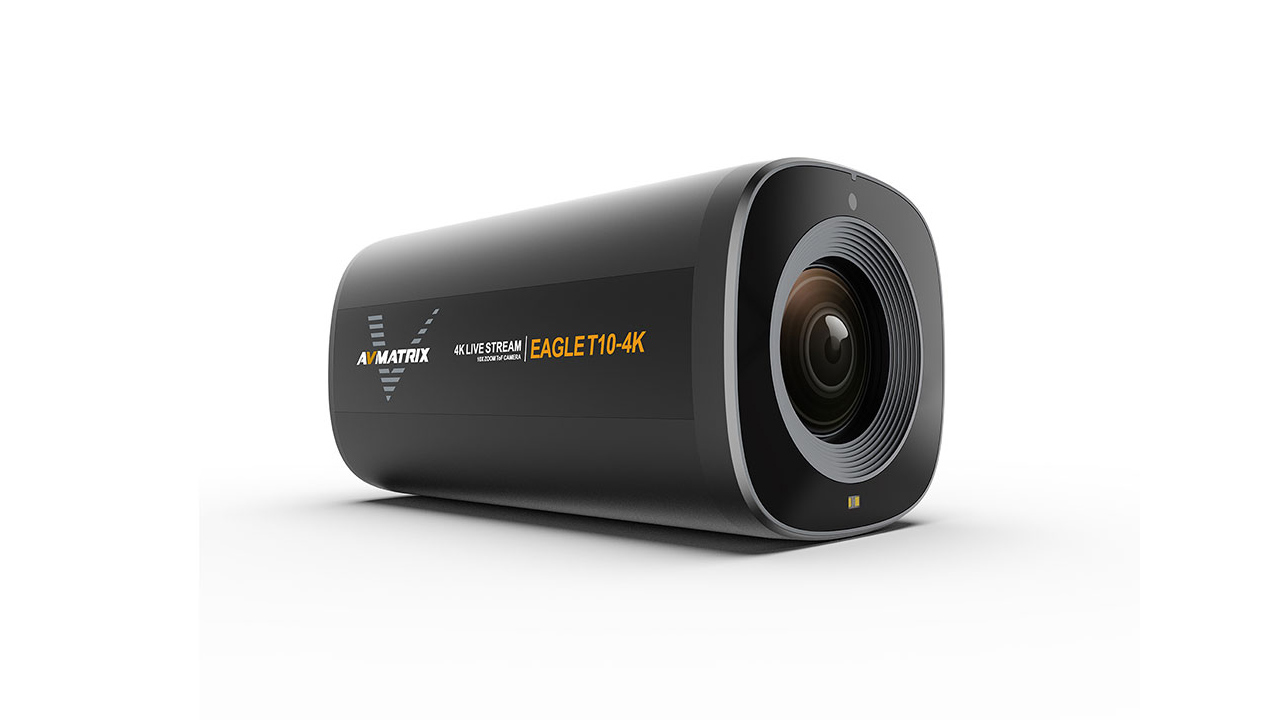

ADTECHNO Corporation announced the launch of the AVMATRIX 4K-compatible 10x zoom autofocus live camera, model number EAGLE_T10-4K.
The new “EAGLE_T10-4K” is a live camera that supports high-definition video output up to 4K30. Equipped with a wide field of view of up to 75.4° and a 10x optical zoom lens, it can cover a wide range of applications with a single unit, from wide-angle shooting that captures the entire conference room to close-up shooting that shows the details of speakers or product samples.
Furthermore, it features a high-speed, high-precision autofocus function utilizing Time of Flight (ToF) ranging technology. It instantly detects changes in distance to the subject, enabling smooth and accurate focusing. This is said to provide stable, high-quality video in a variety of scenarios, including online streaming, hybrid conferences, lecture recordings in educational settings, and corporate presentations.
The device supports HDMI and USB Type-C video output, enabling flexible system configurations ranging from integration with video switchers to direct streaming to PCs. Because it supports the UVC standard when connected via USB, it can be easily used with major streaming and web conferencing platforms such as OBS Studio, Microsoft Teams, and Zoom without the need to install dedicated drivers.
Furthermore, it features preset video modes tailored to various uses such as meetings and fashion, allowing users to easily select the optimal image quality settings for each shooting scene.
The enclosure features an aluminum alloy body with excellent heat dissipation, making it suitable for long-term operation and permanent installations. It supports both vertical and horizontal mounting, and also includes image inversion and mirror display functions, allowing for flexible adaptation to diverse installation environments.
AVMATRIX EAGLE_T10-4KMain Features
- Supports a maximum resolution of 4K30.
- Equipped with a 10x optical zoom lens
- High-speed, high-precision autofocus using ToF (Time-of-Flight) distance measurement technology.
- Simultaneous video output via HDMI and USB Type-C.
- UVC-compatible PC USB driverless operation
- Multiple video presets for different purposes
- RS485 (VISCA) compatible
- External microphone connection terminal
- Supports vertical and horizontal installation.
AVMATRIX EAGLE_T10-4K Functionalities
4K high-definition and 10x optical zoom support a wide range of shooting scenes.
Equipped with a wide field of view of up to 75.4° and a 10x optical zoom lens, this single camera can cover a wide range of applications, from wide-angle shots that capture the entire conference room to close-up shots that show the details of speakers or product samples.
Stable focus tracking with ToF autofocus
Supporting high-definition video output up to 4K30, it features a 10x optical zoom lens and a high-speed autofocus function utilizing ToF (Time-of-Flight) distance measurement technology. It quickly tracks changes in distance to the subject, enabling clear image expression in a wide range of applications including streaming, education, and business.

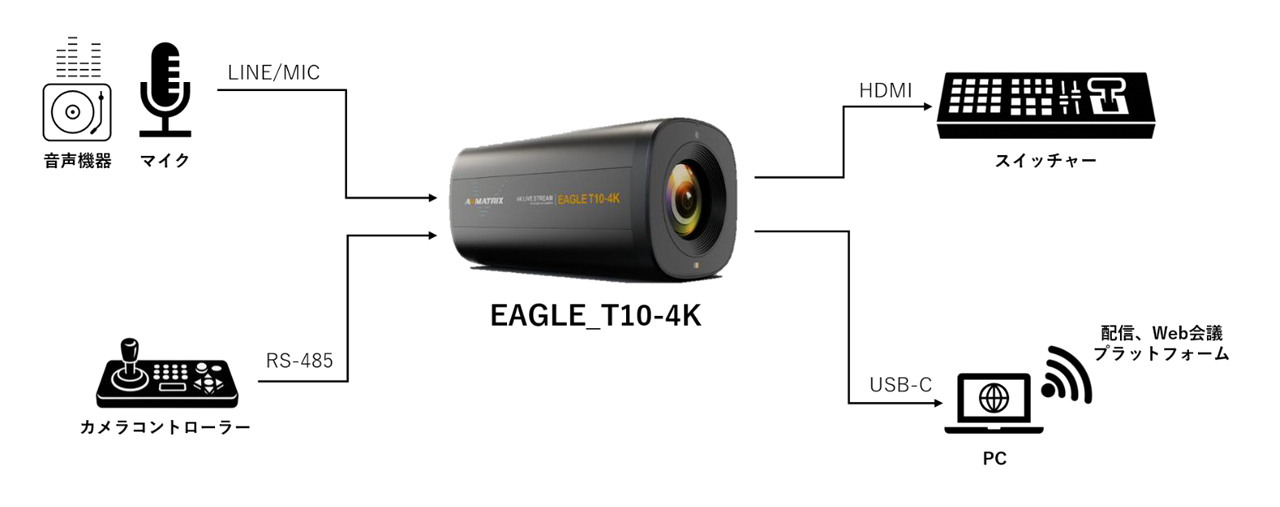

Simultaneous output of HDMI and USB Type-C
The device supports HDMI and USB Type-C video output, enabling flexible system configurations ranging from integration with video switchers to direct streaming to PCs. Because it supports the UVC standard when connected via USB, it can be easily used with major streaming and web conferencing platforms such as OBS Studio, Microsoft Teams, and Zoom without the need to install dedicated drivers.
Camera installation and functions tailored to operational purposes
The enclosure features an aluminum alloy body with excellent heat dissipation, making it suitable for long-term operation and permanent installations. It supports both vertical and horizontal installation, and also includes image inversion and mirror display functions, allowing for flexible adaptation to diverse installation environments.

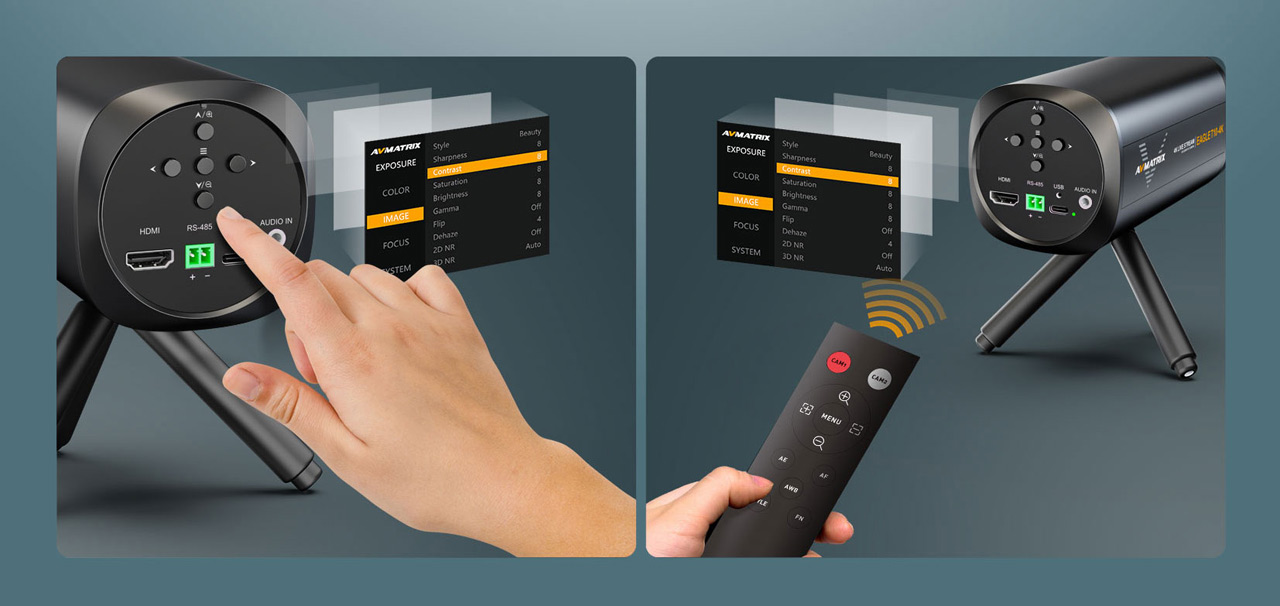

Flexible operation with buttons on the unit and remote control.
In addition to direct access to various settings menus via the control buttons located on the back of the unit, it also supports remote control using the included IR remote control. This allows you to control video settings and various functions without touching the camera itself.
AVMATRIX EAGLE_T10-4K Product Specifications
| Input terminals | 3.5mm stereo mini jack x 1 |
| Output terminals | HDMI x 1 / USB-C (UVC) x 1 |
| Other I/O | RS-485 Terminal Block 2pin x 1 |
| Maximum resolution | 3840×2160@30 |
| viewing angle | 75.4° |
| power supply | USB-C 5V |
| Power consumption | Rated 6W |
| operating temperature | 0℃～40℃ |
| Operating humidity | 10% to 90% (no condensation) |
| Main unit dimensions (WxHxD) | 78mm x 78mm x 154.5mm (excluding protrusions) |
| Main unit weight | Approximately 690g |
| function | 10x zoom / autofocus / auto exposure / auto white balance / preset function / fixed vertical/horizontal housing |
| Included items | Remote control x 1 / Lens cap x 1 / AC adapter (USB-A) x 1 / Dedicated power cable (USB AC) x 1 / HDMI cable x 1 / Warranty card |
| certification | FCC/CE/PSE (AC adapter)/RoHS |
| guarantee | 2 years |
