Aputure released the full-color LED panel “NOVA II 2×1” and dedicated accessories from Aputure Imaging Industries. In addition to the NOVA II 2×1, they will also begin selling the “NOVA II 1×1” which is a different size, and the “NOVA 9° 2×1” which has a different beam angle.
The 2×1 version of the light previously made its debut at IBC 2025.
What is the Aputure NOVA II series?
The Aputure NOVA II is a next-generation full-color LED panel with a durable IP65-rated body, 1000W high output, a wide CCT range (1,800K to 20,000K), and ±Green/Magenta adjustment. Compared to the previous NOVA P600c, it is more than 10 times brighter (at 3m, 5600K) and produces highly accurate color reproduction and high color rendering properties with its BLAIR-CG LED elements.
The control box is built into the light body, making setup simple. This LED light is compact, easy to handle, robust, and high-performance, making it suitable for a wide range of uses, from studio to location shoots.
It supports a variety of control methods, including Sidus Link, DMX, and CRMX, and can be smoothly integrated into large-scale lighting networks.
High output and high color reproducibility
Precise white balance adjustment is also possible, and by using the x, y and HSIC+ modes, it is now possible to adjust the subject’s color and set a green screen/blue screen key optimized for the camera sensor.
Aputure’s proprietary BLAIR-CG (Blue-Lime-Amber-Indigo-Red-Cyan-Green) color gamut covers 90% of the Rec. 2020 color space. It also uses invisible indigo LED chips to recreate natural sunlight, while blue and red LED chips with different hues faithfully reproduce skin tones.
Durable body and flexibility to meet professional needs
The IP65 dustproof and splashproof design means it can withstand harsh location shooting. It also comes with four fan modes (Smart, High, Medium, Silent) and two output modes (MAX, Constant), making it ideal for a wide range of applications, from studios where quiet operation is essential to outdoor shooting where high light levels are required.
New detachable system
Aputure’s unique front-loading quick clip system allows NOVA II accessories to be attached quickly, easily, and precisely from the front without taking up any extra space.
Best-in-class brightness
It achieves high-power brightness of 28,380 lux (5600K, 3m). It employs a three-stage “focus-to-blend” design, with focusing TIR lenses placed on each individual LED element, resulting in top-class brightness thanks to its tightly packed design. The improved LED element arrangement provides bright, even illumination without color bleeding on the subject.
Various operation methods
It is compatible with Sidus Link and Sidus Link Pro, and supports 16-bit DMX512-A input and output, CRMX, and firmware updates via USB or DMX. It can be used as a standalone key light, or can be controlled via a complex network from a lighting console, achieving the fast and reliable communications required in modern film sets.
Other Aputure NOVA II features
- 2 lockable Ethernet ports
- Smooth 0.1-100% stepless dimming
- Output mode: Maximum output mode and constant output mode
- Lead/follow function and studio mode support
- 4 fan modes: (DMX controllable)
- 4 types of dimming curves: Linear, Exponential, Logarithmic, S-shaped
- 15 effects: Fireworks, Paparazzi, Faulty Bulb, Lightning, TV, Pulsing, Strobe, Explosion, Club Lights, Candle, Fire, Welding, Cop Car, Color Chase, Party Lights
- Saveable presets: 10
- Firmware upgradeable via Sidus Link Pro/Sidus Link, USB drive, or DMX
- High-resolution rear color display clearly shows instrument status and settings
Weight and dimensions
| weight | |
| Lamp body (without yoke) | 16.25kg |
| Detachable yoke with junior pin | 2.40kg |
| Flat Diffuser | 2.00kg |
| AC cable | 0.80kg |
| rolling hard case | 2.02kg |
| size | |
| Lamp body (without yoke) | 69.1×38.8×13.6cm |
| Lamp body (with yoke) | 82.9×56.6×15.4cm |
| Flat Diffuser | 68.4×37.5×4.0cm |
| rolling hard case | 94.1×37.2×66.4cm |
Aputure NOVA II Specifications
| LED chip | BLAIR-CG | |
| CCT | 1,800K – 20,000K | |
| CRI | ≥95 | |
| TLCI | ≥95 | |
| SSI (tungsten) | 90 | |
| SSI (D56) | 86 | |
| TM-30 RF (Average) | 95 | |
| TM-30 RG (average) | 100 | |
| Maximum power consumption | 1,250W | |
| Maximum output | 1,000W | |
| IP standard | IP65 | |
| Beam angle without accessories | 35 degrees | |
| Flat diffuser beam angle | 95 degrees | |
| Number of pixels | 2 pixels | |
| AC operating voltage | 100V to 240V | |
| Operating temperature | -20ºC to 45ºC | |
| Storage temperature | -40ºC to 85ºC | |
| Control Method | Main unit, Sidus Link, Sidus Link Pro, DMX512-A, LumenRadio CRMX, Art-Net/sACN, RDM | |
| Control Port | 1x 5-pin DMX in, 1x 5-pin DMX out, 2x locking Ethernet ports | |
| How to update the firmware | Sidus Link, Sidus Link Pro, USB-A | |
| Wireless Range (Bluetooth and CRMX) | ≤100m | |
| Cooling method | Active cooling system (cooling by built-in fan) | |
| Lamphead fan noise level | Smart Mode | Variable |
| High Speed Mode | 40 dBa | |
| Medium Speed Mode | 35 dBa | |
| Silent Mode | 0 dBa | |
| Included items | NOVA II 2 x 1 x 1, Detachable Yoke with Junior Pin x 1, NOVA II 2 x 1 Flat Diffuser x 1, AC Cable (6m) x 1, Rolling Hard Case (Kit Only) x 1 | |

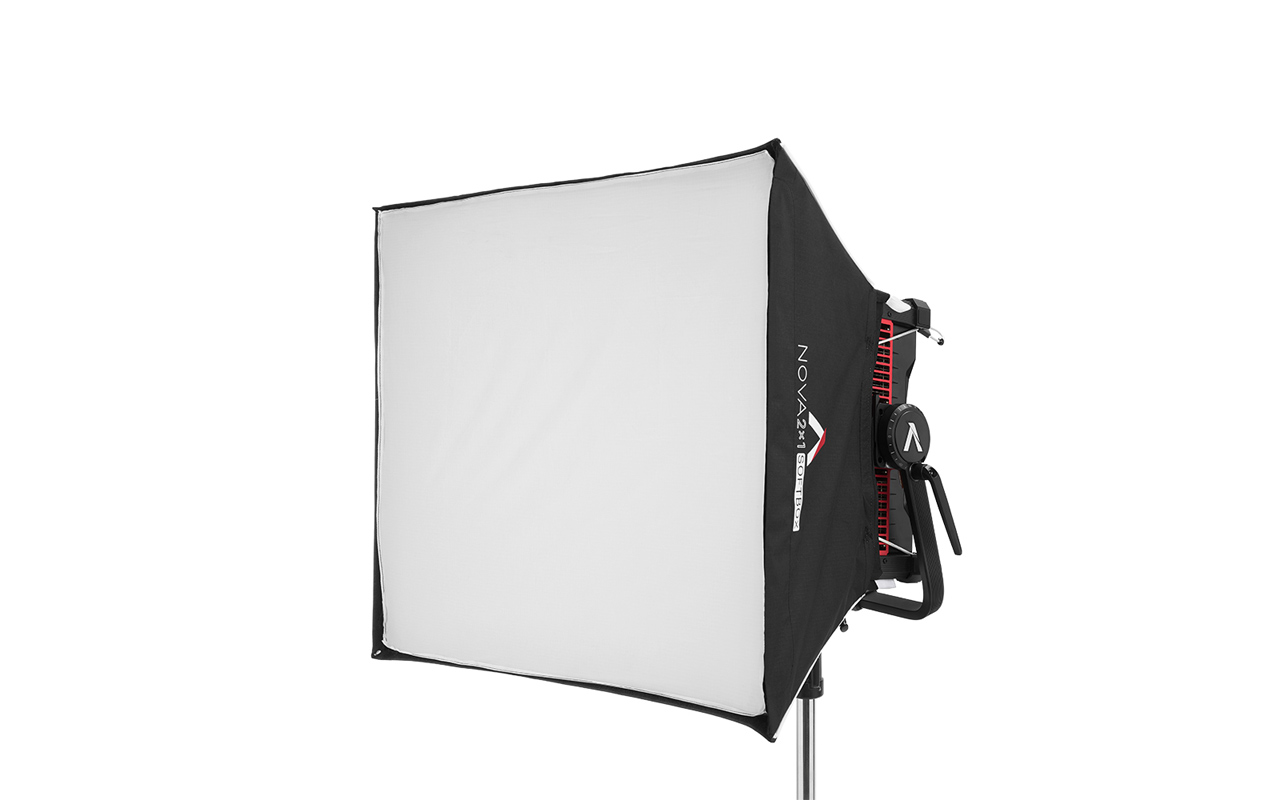

About the Aputure NOVA II 2×1 Softbox
This soft light accessory is designed to soften and diffuse the light from the Aputure NOVA II 2×1. It comes with 1-stop and 2-stop diffusers, allowing you to easily adjust the light diffusion level depending on the application. Additionally, by using the included light control grid, you can narrow the beam range while giving the light directionality.
It’s quick to set up, extremely durable, and comes with a soft carry bag for easy transport, making it an essential tool for cinematographers and lighting technicians looking for precise control over a high output panel light.
Aputure NOVA II Dome Diffuser
The Dome Diffuser converts light into a soft, omnidirectional beam, creating a natural, enveloping effect on the subject, making it ideal for use as a key light for portraits or as ambient fill light. Lightweight and easy to install, the Dome Diffuser minimizes the overall footprint of your equipment while providing a wide beam like a lantern.

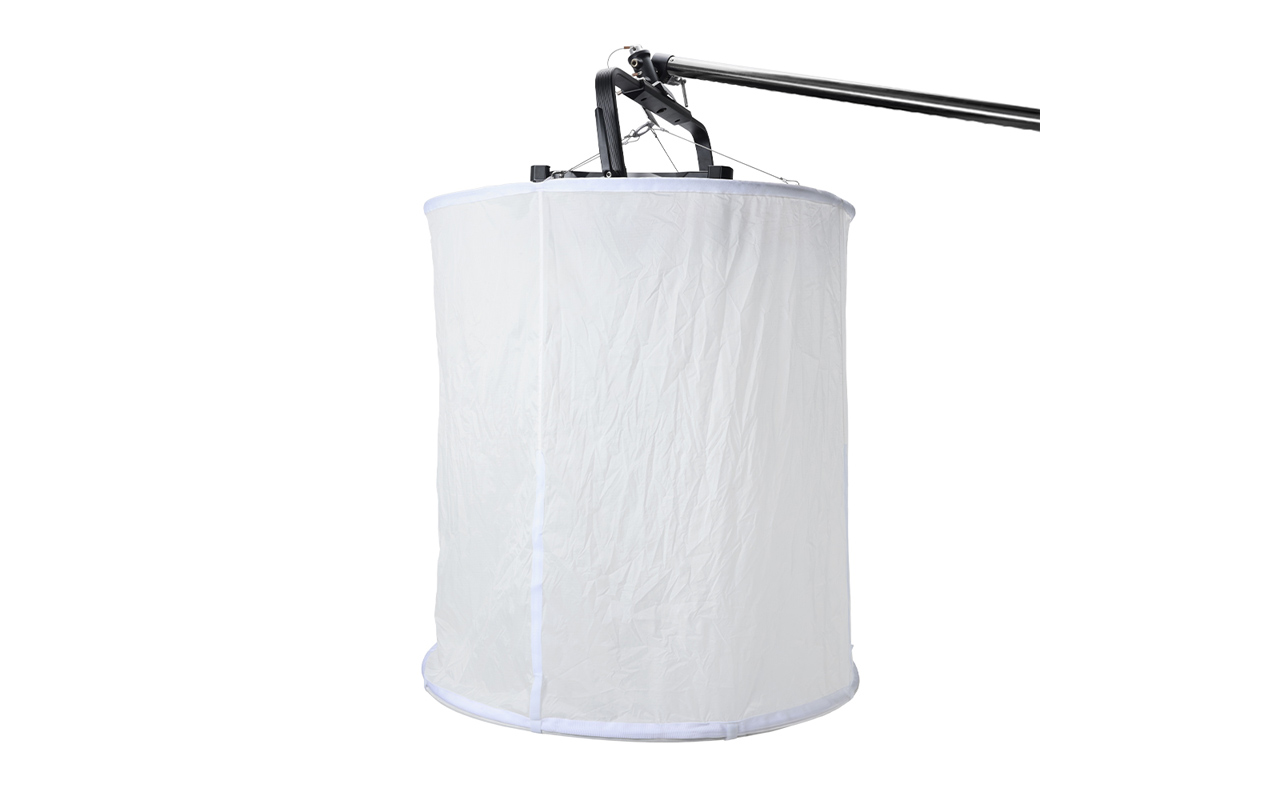

About Space Light 90
The Space Light 90 is a 90cm diameter cylindrical soft light accessory designed to convert Aputure lights with NOVA II 2×1 or Bowens mounts into high-output top lights or omnidirectional light sources.
It can be attached directly to the NOVA II 2×1, or to any COB light that supports a Bowens mount using the included adapter plate. It also comes with a roll-up skirt to reduce light spill, providing cinematographers with flexible top lighting in a variety of locations, including studios, sound stages, and broadcast sets.

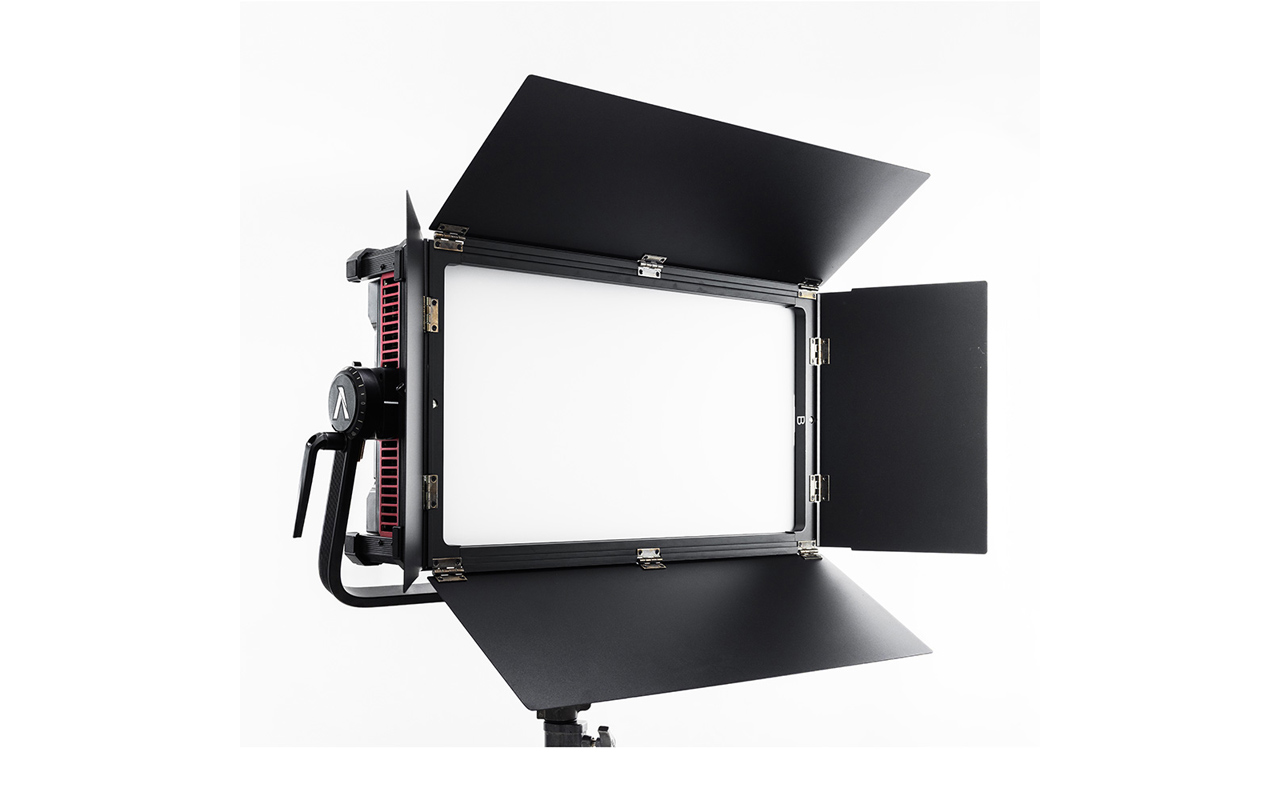

The NOVA II 2×1 Barndoor
This light control accessory attaches smoothly to the accessory slot on the front of the fixture. The barndoor allows precise control of the beam spread and directionality of the NOVA II 2×1. Made from sturdy metal flags, it allows you to quickly and reliably shape your light.
The NOVA II 2×1 triple light bracket
This is a dedicated bracket that can mount three NOVA II 2×1 lamp heads vertically. This allows you to combine the three NOVA II 2×1 lamp heads into one light source to create a scene with sunlight streaming in.
Dual quick release truss clamp adapter
This heavy-duty rigging accessory replaces the NOVA II 2×1’s detachable yoke, allowing for a safe, fast, and close attachment of the NOVA II 2×1 to a truss structure.
NOVA II 2×1 Rolling Hard Case
This dedicated case is designed to safely and securely transport the NOVA II 2×1 and its accessories. Featuring custom-designed foam inserts and durable casters, it allows for safe and efficient transport of the complete NOVA II 2×1 setup, whether between locations or in storage.
NOVA II 2×1 Detachable Yoke with Clamp
This detachable yoke is designed specifically for the NOVA II 2×1 body and features a truss clamp instead of the junior pin of the standard yoke, allowing the NOVA II 2×1 to be secured directly to a truss structure without the need for a truss clamp to junior receiver adapter.
NOVA II 2×1 Fabric Control Grid
The light control accessory attached to the front suppresses off-axis light leakage. By narrowing the original beam angle, it is possible to shape the light more directionally without significantly increasing the installation space.
