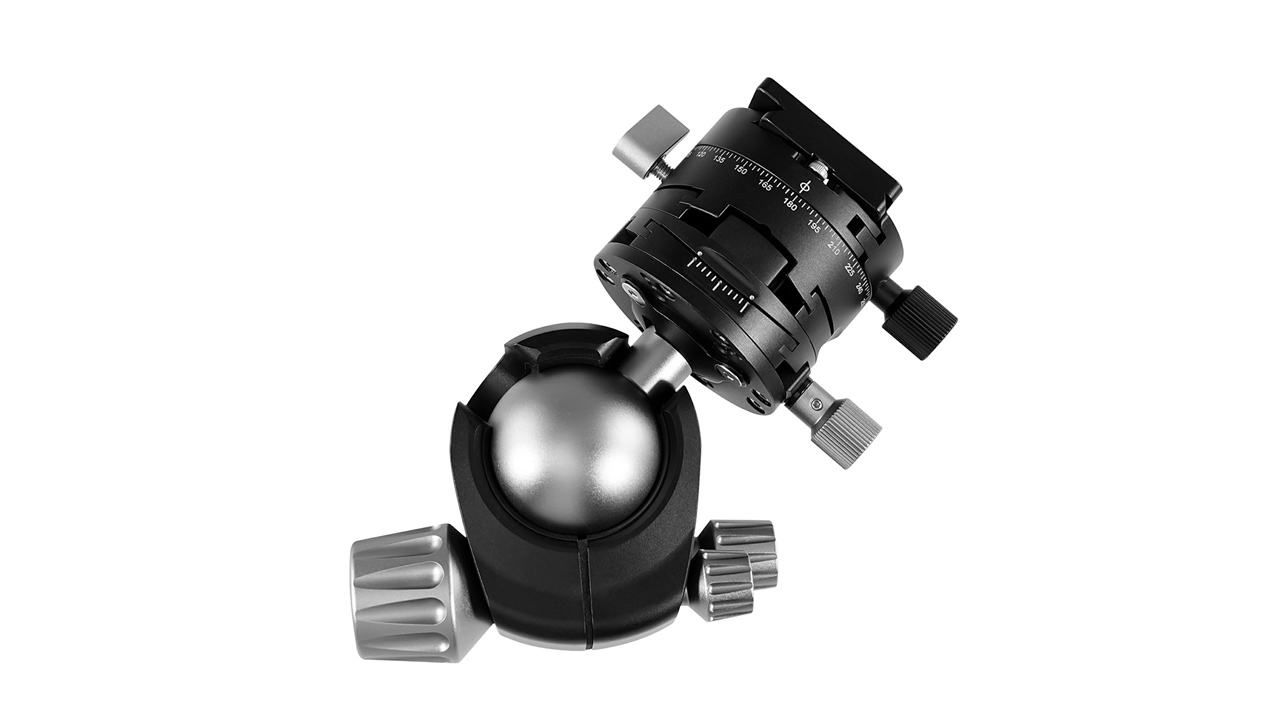

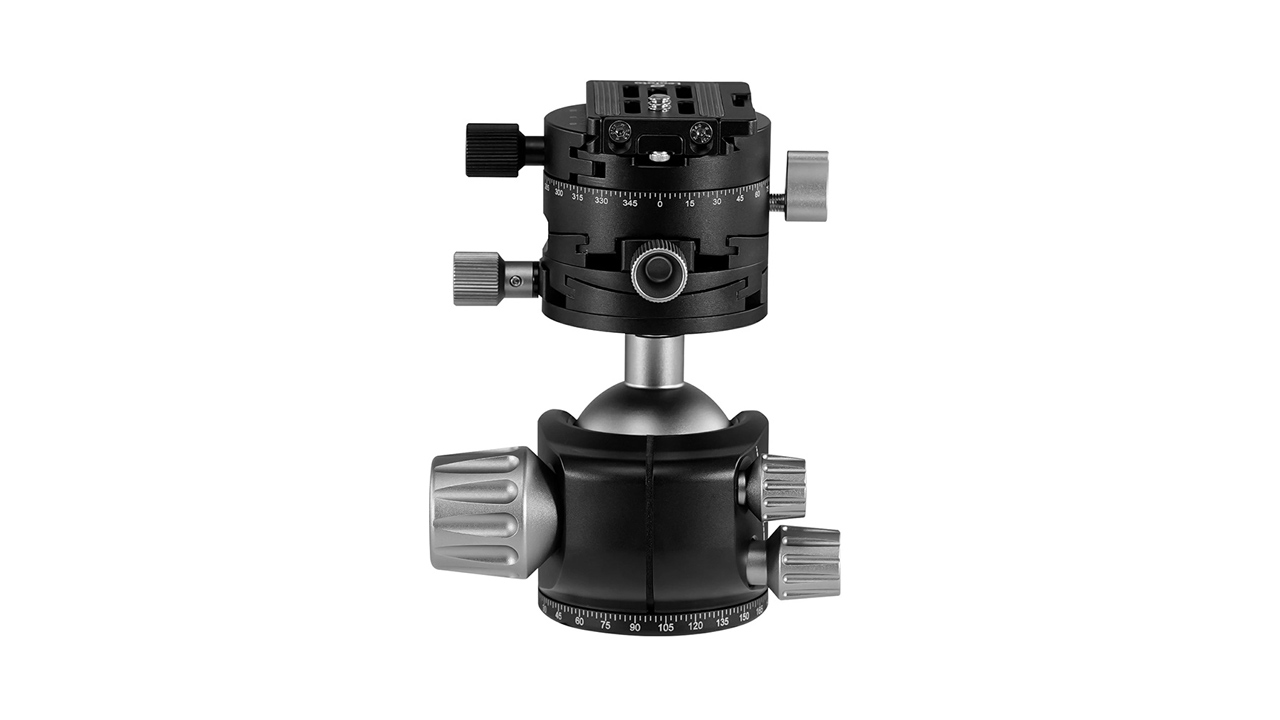

Photography equipment brand Leofoto announced the LH-47GR, a new geared ball head with stronger fixing power than previous models, due to be released on August 22, 2025.
A free-standing head that allows for quick composition and precise adjustment
A common feature of geared ball heads is that after quickly deciding on the composition on the ball head side, you can make final adjustments by operating the gear. The gear can be operated on two axes, vertically and horizontally, with a range of movement of ±10° on both axes.

Advantages of an integrated gear head
By attaching a G2 geared head to a free-angle head, it is possible to achieve a similar feel to a geared free-angle head. However, a geared head like this product is completely fixed and cannot be removed, which reduces the number of control knobs, thereby reducing misoperation and camera shake.

Friction function for comfortable operation
The LH-47GR ball head is equipped with a friction function. It allows you to apply tension to the ball’s movement, and by tightening the knob, it prevents sudden loosening when the main ball lock knob is released. The appropriate tension also supports composition adjustments.

Also available as a set with the Ranger Series tripod LS-365C
The Leofoto LH-47GR Ball Head will also be sold as a set with the compact, stable Ranger series tripod, “LS-365C.” The soft case that comes with the LS-365C does not fit the LH-47GR with the tripod head attached, but this is resolved when sold as a set, allowing the tripod to be stored with the head attached.

Leofoto LH-47GR Ball Head Product Specifications
| Load capacity | 20kg |
| weight | 800g |
| height | 138mm |
| Ball Diameter | 47mm |
| Tripod mounting base diameter | 62mm |
| Clamp operation type | screw knob |
| Attached plate | NP-60 (Arca-Swiss compatible) |
| Tripod mounting screw | 3/8 inch (thick screw) |
LS-365C+LH-47GR Product Specifications
| Load capacity | 20kg |
| weight | 2,680g |
| Full extension | 1,968mm |
| elongation | 1,650mm |
| minimum height | 215mm |
| Storage height | 628mm |
| Number of steps | 5 |
| Maximum leg diameter | 36mm |
| Base Diameter | 60mm |
| Attached plate | NP-60 (Arca-Swiss compatible) |
