Aputure announced they will release the STORM 700x bi-color LED light, and its dedicated accessories. This light has Aputure’s newest BLAIR processing chip and other new features.
What is the Aputure STORM 700x?
This point-source LED light combines high output and precision in a compact body. Like the STORM XT52, STORM 1200x, and STORM 400x, it is equipped with Aputure’s proprietary BLAIR LED chipset, which efficiently utilizes the output of each element to achieve unprecedented white light reproduction accuracy and excellent spectral quality.
Compared to the Aputure Light Storm 600x Pro, the STORM 700x is a point light source LED that provides more than three times the illuminance when used at 3m, 5600K, and with the included 35° reflector, while remaining compact enough to be mounted on a baby stand.
Within the STORM series, it is positioned between the 400W class STORM 400x and the 1,200W class STORM 1200x, and is designed as a “general-purpose machine” that can cover a wide range of settings, from single-lamp lighting to medium to large-scale settings.
Ultimate tunable white light and color control
Equipped with a BLAIR (blue/lime/amber/indigo/red) engine, it delivers the highest quality white light of any LED technology to date and the industry’s widest ±G (green/magenta) adjustment range.
In particular, the indigo color included in the BLAIR light engine beautifully highlights whites such as sunlight and tungsten light sources, further improving color reproduction on set. HSIC+ and x,y control modes enable vivid color expression covering more than 70% of the Rec. 2020 color gamut.
This allows subtle color effects such as sunsets and fluorescent lights to be reproduced without using color filters.
High power, anywhere
The unique optical system delivers a brightness of 18,670 lux (at 5600K) at 3m when using the included 35° reflector. Furthermore, when combined with a CF10 Fresnel lens, it delivers an illumination of over 19,000 lux at 3m. Despite boasting the highest brightness among point-source LED lights in its class, its lightweight design weighs just 5.15kg, allowing for flexible shooting both indoors and outdoors.
In addition, the unit is dustproof and water-resistant to IP65 standards, from the main unit to the control box and cables, and all connectors and internal components are sealed, allowing for stable operation even in rainy or dusty outdoor environments.
Various operation methods
In addition to wireless control of Sidus Link and Sidus Link Pro via Sidus Bluetooth Mesh, it also supports CRMX and 5-pin DMX, enabling integration with various professional lighting control software for flexible and efficient on-site workflow.
Other product features
- Advanced diode mixing technology maximizes the optical output of each element
- ProLock locking Bowens mount securely and quickly secures accessories
- Smooth, stepless dimming from 0.1 to 100%
- Versatile control methods : Sidus Link/Sidus Link Pro app, LumenRadio CRMX, 16-bit 5-pin DMX512 input/output
- Firmware can be updated in bulk via Sidus Link/Sidus Link Pro/USB-A port
- Dual output mode : Max/Constant
- High Speed mode, Lead-Follow mode, Studio mode
- 4 types of dimming curves : Linear, Exponential, Logarithmic, S-shaped
- 10 effects : Paparazzi/Fireworks/Flickering Bulb/Cannon/Lightning/TV/Pulse/Flash/Explosion/Flame
- Saveable presets: 10
Aputure STORM 700x Specifications
| weight | Lamp head (with yoke) 5.15 kg, Control box 4.10 kg, AC power cable 0.60 kg , Head cable 1.06 kg , BM6835 35º Hyper Reflector 0.35 kg, Lightning clamp 0.65 kg |
| size | Lamp head (with yoke) 27.4 x 27.2 x 50.3 cm Control box 12.3 x 15.4 x 31.4 cm |
| Contents | Lamp head x 1, Control box x 1, Lightning clamp x 1, BM6835 35º Hyper Reflector x 1, Lamp head cable (5m) x 1, AC power cable (6m) x 1, Bowens mount protection cover x 1, Carrying case x 1 |
| LED Chipset | BLAIR |
| CCT | 2,500K – 10,000K |
| Green Magenta | ±G 100% (Full ASC MITC Range) |
| CRI | ≥95 |
| TLCI | ≥95 |
| SSI (tungsten) | 87 |
| SSI (D56) | 87 |
| TM-30 RF (Average) | 95 |
| TM-30 RG (average) | 100 |
| Maximum power consumption | 850W |
| Maximum output | 700W |
| Operating voltage | 100V ~ 240V / 50-60 Hz |
| USB-A Power Port | 5V output/0.5A |
| IP standard | IP65 |
| Beam angle (without reflector) | 58 degrees |
| Beam angle (with reflector attached) | 35 degrees |
| Data Port | 1x 5-Pin DMX In, 1x 5-Pin DMX Out |
| CRMX Chip | Built-in TimoTwo module |
| Operating environment temperature | -20°C to 45°C |
| Storage environment temperature | -40°C ~ 80°C |
| How to operate | Main unit, Sidus Link App, Sidus Link Pro App, DMX, RDM, CRMX |
| How to update the firmware | Sidus Link, Sidus Link Pro, USB-A Drive |
| Cooling method | Active Air Cooling |

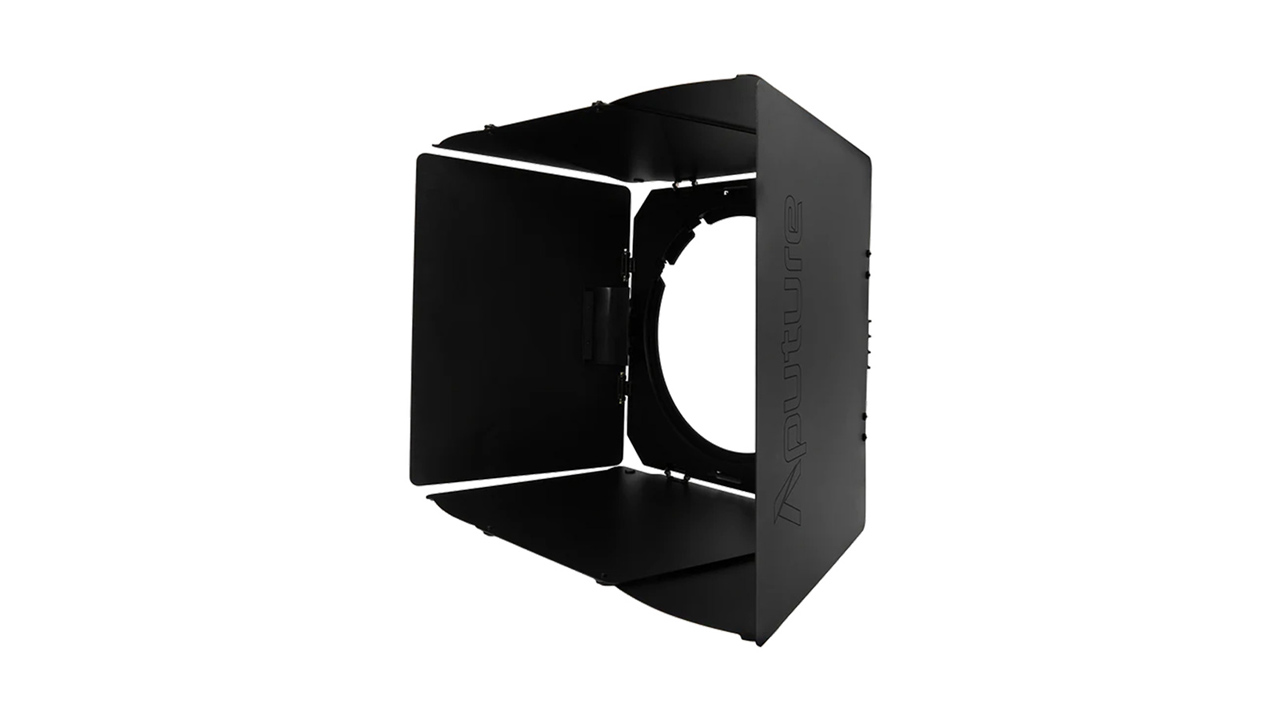

CF10 Fresnel & Barndoor Kit
This compact Fresnel kit is compatible with Bowens mount and includes a Fresnel lens and a dedicated barn door. The CF10 Fresnel lens is 10 inches (approximately 25.4 cm) in diameter and is optimized specifically for the STORM 700x. It features a spot to flood adjustment range of 15° to 40°, providing smooth, uniform light from the center to the periphery.
Despite its compact size, it efficiently amplifies and optimizes the light output of the STORM 700x, allowing for scene-specific control of illumination. By using the included CF10 barndoors, the direction and dispersion of the light can be freely adjusted. A convenient dedicated carrying case is also included, allowing for smart storage of the Fresnel unit and barndoors.
Specifications
| pp illumination angle | Full Spot 15º Full Flood 40º |
| size | CF10 Fresnel ⌀29.8 x 12.1 cm CF10 Barn Door 32.5 x 35.9 x 45.5 cm Carrying Case 46.0 x 25.0 x 40.0 cm |
| weight | CF10 Fresnel 2.10kg CF10 Barn Door 1.40kg Carrying Case 3.00kg |
| Contents | CF10 Fresnel x 1, CF10 Barn Door x 1, Safety Wire x 1, Soft Carrying Case x 1 |
BM6825 25° Reflector
This hyper reflector is designed to narrow the standard beam angle of the STORM 700x to 25°, increasing the illumination output to a maximum of 27,190 lux for more focused and powerful lighting.
Specifications
| Irradiation angle | 25° |
| size | ⌀25.5 x 25.9 cm |
| weight | 0.35kg |

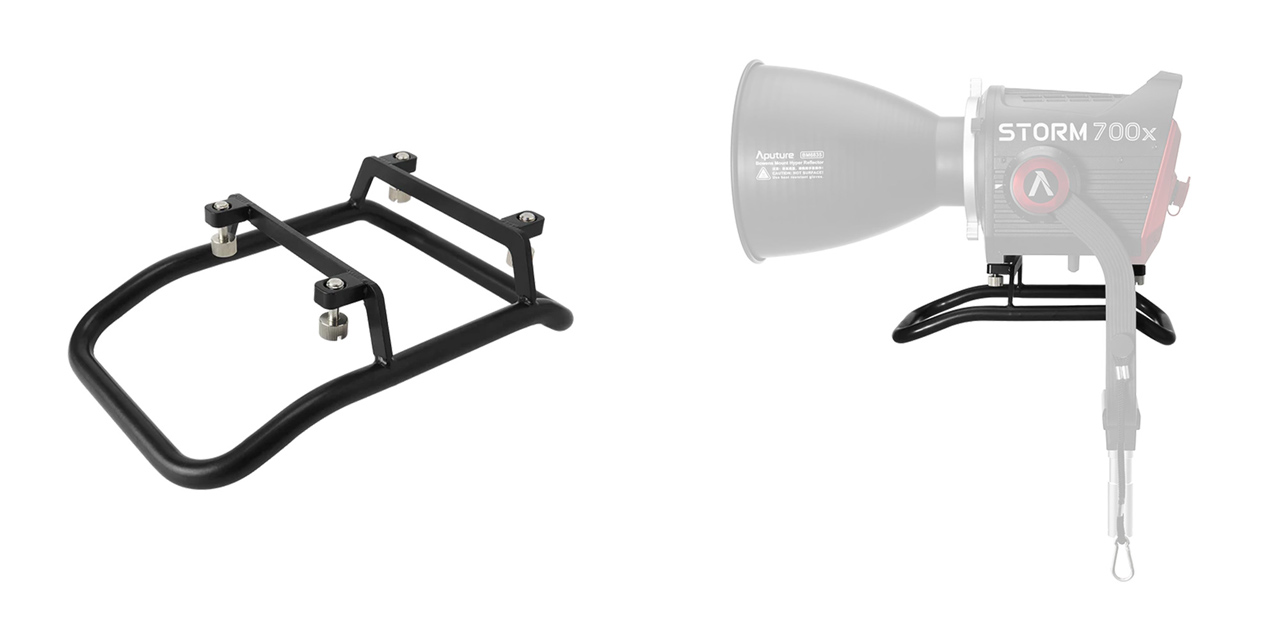

STORM 700x Skid
This stainless steel skid attachment attaches to the bottom of the STORM 700x main unit. By attaching this skid, the light can be placed safely and stably on the floor, even with the CF10 Fresnel attached, preventing the risk of it tipping over.
The rear of the skid has a cutout to prevent interference with the head cable when tilting the light up or down.When installed, the light can be safely placed on a head cart or shelf even with the STORM 700x main unit, head cable, CF10 Fresnel, and CF10 barndoor attached.
STORM 700x 8-pin cable 15m
This extension cable allows for operation from the ground while the light is installed at high altitude. Compared to the standard 5m cable, it provides more flexible installation between the lamp head and the control box.
STORM 700x Cine Kit
This is a great value kit that includes the STORM700x, CF10 Fresnel & Barndoor Kit, and STORM700x Skid.
